1.The whole machine is made of sanitary grade stainless steel, which is high temperature resistant, corrosion resistant and easy to clean;
2. PIC control, simple and convenient operation, stable operation;
3.Low loss, no leakage, safe, no odor.
It is widely used in beer, gelatin, seaweed gum, soy sauce, vinegar, fruit wine, wine, health wine, sake, liquor, cooking wine, synthetic plasma, traditional Chinese medicine extract, paraffin, rice wine, fruit and vegetable juice, tea beverage, vegetable oil, beverage syrup, fructose syrup, high-fructose syrup, glucosamine syrup, sucrose, beet sugar, honey, MSG, oral liquid, antibiotics, vitamins, resins, inorganic acids, clarification and filtration of liquid products such as organic acids, alcohols, benzene, aldehydes, and starches.

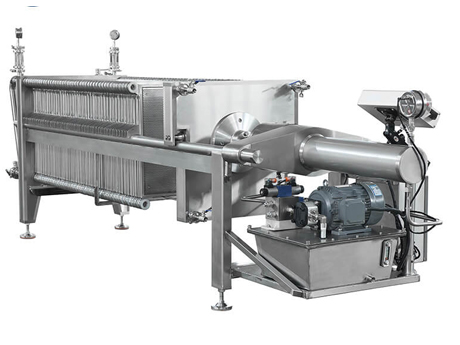

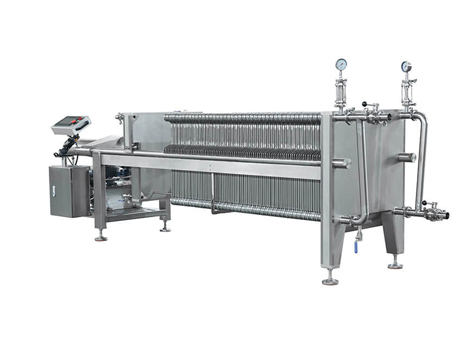

PLC controlled hydraulic stainless steel plate and frame fine filter is made of 1Cr18Ni9Ti or 304 or 306 high-quality stainless steel materials. The filtration temperature can reach 180°C. This machine integrates coarse filtration and fine filtration, and is suitable for solid-liquid separation of various suspensions. Stainless steel filter presses are specially developed to meet the high requirements of hygiene and purity, and are especially suitable for solid-liquid separation in laboratories, fine chemicals, pharmaceuticals, herbal extraction, food, and cosmetics production.
1)Frame material: food grade stainless steel 304;
2)Plate frame material: food grade stainless steel 304(Stainless steel 316 is optional.)
3)Seal ring material: white silicone rubber(Seal ring material is optional.);
4)Working pressure: < 0.4MPa;
5)Working temperature: < 180°C;
6)Applicable filter material: various thick filter cardboards, thin various filter papers, filter membranes, filter cloths, etc;
7)Filtration fineness: suitable for filter media from 200-mesh, 300-mesh filter cloth for coarse filtration to 0.22μm, 0.45μm for fine filtration, filter paper, filter membrane;
8)Cardboard fine filter: The plate and frame are pressed flat by plane, which is suitable for clamping thick filter cardboard, such as support plate, pre-filter plate, fine filter plate, sterilization plate, etc. with a thickness of 3-5mm.
Click to expand to view the data
| Model | Filter Area(㎡) | Plate Qty | Flow(T/h) | Plate Size(mm) | Dimension(mm) |
| BASJL400-2 | 2 | 15 | 1-2 | 400*400 | 1250*660*1300 |
| BASJL400-3 | 3 | 21 | 1-3 | 400*400 | 1350*660*1300 |
| BASJL400-4 | 4 | 31 | 3-4 | 400*400 | 1550*660*1300 |
| BASJL400-6 | 6 | 45 | 4-6 | 400*400 | 1750*660*1300 |
| BASJL400-8.5 | 8.5 | 61 | 6-8 | 400*400 | 2100*660*1300 |
| BASJL400-9.5 | 9.5 | 71 | 8-10 | 400*400 | 2300*660*1300 |
| BASJL600-14 | 14 | 41 | 10-13 | 600*600 | 1750*870*1350 |
| BASJL600-21 | 21 | 61 | 15-20 | 600*600 | 2100*870*1350 |
| BASJL600-24 | 24 | 71 | 20-25 | 600*600 | 2250*870*1350 |
| BASJL600-35 | 35 | 101 | 25-30 | 600*600 | 2800*870*1350 |
