1.Higher automation, larger capacity, self-cleaning and sewage discharge
2.Continuous water supply, and wide application range
3. Filtration precision 100~3000um.
It is widely used for treatment of drinking water, construction circulating water, industrial circulating water,sewage, mining water, Petroleum,Paper making etc…

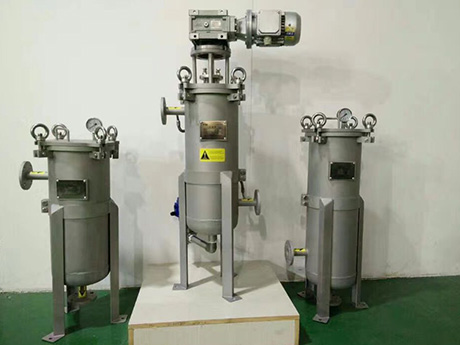

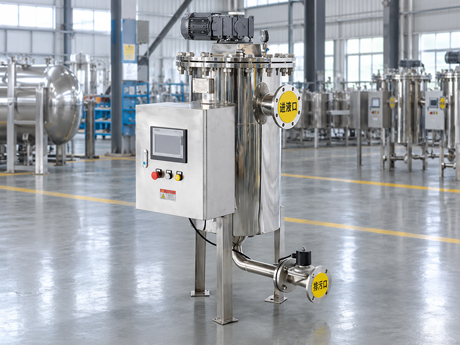

The fully automatic self-clean filter not only has the function to filter raw water, but also can automatically clean the filter element. And while cleaning, the filtering process is continuous. Compared with other kind filters,this machine has the advantages of higher automation, larger capacity, self-cleaning and sewage discharge, continuous water supply, and wide application range.
Click to expand to view the data
| Model | J mm |
J1 mm |
J2 mm |
Y mm |
Inlet/Outlet(DN) | Weight（Kg） | Filtering Area cm2 | Total Height(mm) | Capacity(t/h) |
| DZQX-2 | 886 | 376 | 718 | 683 | 50 | 56 | 710 | 1400 | 19 |
| DZQX-3 | 886 | 376 | 718 | 683 | 80 | 87 | 1165 | 1650 | 45 |
| DZQX-4 | 936 | 411 | 770 | 683 | 100 | 106 | 1367 | 1450 | 65 |
| DZQX-5 | 1018 | 461 | 852 | 683 | 125 | 132 | 2095 | 2100 | 105 |
| DZQX-6 | 1111 | 523 | 939 | 744 | 150 | 197 | 3014 | 2150 | 150 |
| DZQX-8 | 1427 | 715 | 1228 | 820 | 200 | 248 | 5270 | 2300 | 265 |
| DZQX-10 | 1685 | 853 | 1439 | 874 | 250 | 360 | 7867 | 2450 | 410 |
| DZQX-12 | 1815 | 944 | 1569 | 939 | 300 | 486 | 11414 | 2500 | 590 |
| DZQX-14 | 2082 | 1094 | 1792 | 1026 | 350 | 653 | 15552 | 3200 | 800 |
| DZQX-16 | 2360 | 1239 | 2019 | 1098 | 400 | 765 | 20344 | 3300 | 1050 |
| DZQX-18 | 2632 | 1389 | 2245 | 1199 | 450 | 814 | 25751 | 3380 | 1320 |
| DZQX-20 | 2919 | 1547 | 2483 | 1288 | 500 | 920 | 31786 | 3450 | 1630 |
| DZQX-24 | 3510 | 1865 | 2864 | 1458 | 600 | 1038 | 42295 | 3600 | 2350 |
1000 engineers will always provide service for your project
In 2 hours, contact and give clear solutions
Provide the required information, product, site planning drawings, etc. timely
Slove the problem completely,inlcuding product installation,tech training service,spare parts,on-site maintenance, etc.
1. Compact structure, small size and light weight
2. Easy to install and use
Single Bag Filter Housing
1. Compact structure
2. Easy to install and use
Multi Bag Filter Housing
1.Compact structure with small size and weight
2.Simple operation, high efficiency and stable performance
The Diatomite Filter
1.High efficiency and no environmental pollution.
2.Automatic fine filtration
Candle Filter
1.Fully sealed filtration, no leakage, no environmental pollution
2.Filter without filter paper, filter cloth, filter cost is very low
Leaf Filter
1.Advanced structure, no deformation, easy to clean
2.Easy to operate and flexible to move

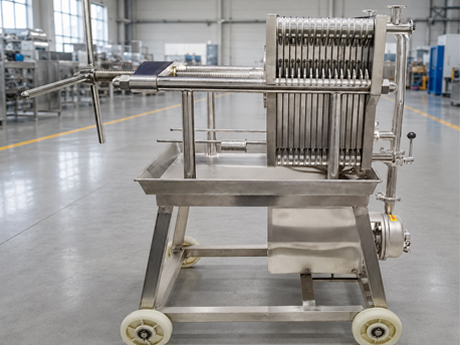

S.S. Multi-layer Filter
1.High filtration precision, uniform pore size filter.
2.Small filtration resistance, flux, long service life.
Cartridge Filter
