DNY-3 Belt Filter Press

Advantages:

1.Automated operation, no labor required, low cost
2.Automatic control, continuous operation;
3.Easy Operation, easy maintenance

Applications:

Sludge dewatering for wastewater treatment, Such as: Foodstuff, Printing/Dyeing, Slaughter Sewage, Chemicals, Mining, Medicine, etc

Leave Message Send Email

Introduction Parameter Service Customer Reviews Related Case Related Products Inquiry

Introduction

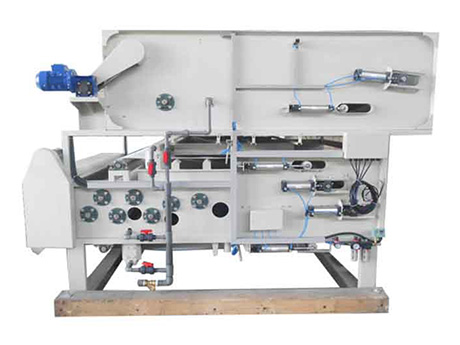

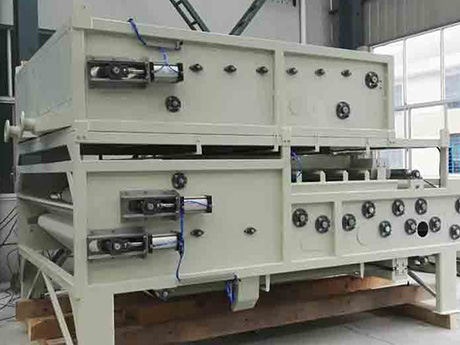

DNY-3 belt filter press developed by Dazhang Filtration Equipment Co., Ltd is made of high strength material, which has the advantages of large capacity, high efficiency, long service life and other significant characteristics. DNY-3 belt filter press is widely used for continuous sludge dewatering in wastewater treatment engineering including papermaking, printing and dyeing wastewater, electroplating wastewater, leather sewage and other industries.

1)The main structure is made of stainless steel.

2)Adopt high quality filter cloth, with longer service life.

3)Low energy consumption, low speed, low noise, the noise value ≤ 75dB (A).

4)Sludge dewatering machine cloth offset correction adopts pneumatic mechanical adjustment, with high operation stability.

5)High operational safety.

6)The system adopts obviously humanized design, this kind of belt filter press has the advantages of convenient operation, simple maintenance.

Parameter

Click to expand to view the data

Model	Filter press(m2)	Low Consistency		Middle Consistency		Cake Moisture(%)	Power(Kw)			S.S.Tray	Reference Dimensions(mm)			Doundation Dimensions L2*W1(mm)	Weight(kgs)
Model	Filter press(m2)	Flow capacity(m3/hr)	D.S. capacity(kg/hr)	Flow capacity(m3/hr)	D.S. capacity(kg/hr)	Cake Moisture(%)	Power of Driving Motor	Mixing Power	Gravity concen-trator motor power	S.S.Tray	L	W	H	Doundation Dimensions L2*W1(mm)	Weight(kgs)
DNY500-3	500	7.5-10	30-60	6-7.5	50-94	65-84	0.75	0.75	0.55	included	2600	1050	2175	2455*836	1200
DNY750-3	750	10.5-15	42-90	9.3-10.5	75-140	65-84	0.75	0.75	0.55	included	2600	1300	2160	2455*1096	1600
DNY1000-3	1000	15-20	60-120	12.5-15	100-188	65-84	0.75	0.75	0.55	included	3000	1550	2160	2455*1346	1800
DNY1250-3	1250	21-28	84-168	17.5-21	140-263	65-84	0.75	0.75	0.55	included	3000	1800	2160	2455*1596	1960
DNY1500-3	1500	25-33	100-198	20-25	160-300	65-84	0.75	0.75	0.55	included	3000	2050	2160	2455*1846	2250
DNY1500L-3	1500	28-35	110-215	22-28	180-330	65-84	0.75	0.75	0.55	included	3000	2550	2160	2455*2096	2600
DNY1750-3	1750	30-40	120-234	24-30	196-368	65-84	0.75	0.75	0.55	Not included	3000	2300	2160	2455*2096	2800
DNY2000-3	2000	35-45	140-270	28-35	240-450	65-84	1.1	0.75	0.55	Not included	3200	2550	2180	2455*2346	3200
DNY2500-3	2500	40-55	180-350	35-50	300-550	65-84	2.2	1.5	0.75	Not included	4600	3050	2600	4255*2846	3600
DNY3000-3	3000	50-65	220-420	45-60	350-650	65-84	3	2.2	1	Not included	4600	3550	2600	4255*3346	4000
Remark		Decided by the nature of wasrewater								Can be customized	We will supply with drawings
