1.Simple and economical filtration through maximum flexibility and mobility
2.Compact and all in one design for trouble-free and reliable operation
3.High level of security through the use of the latest security technology
Slurry dewatering for wastewater treatment, Foodstuff, Chemicals, Mining, Medicine, Ceramic slurry, etc

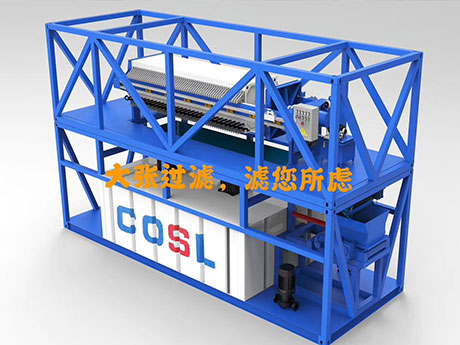

The Mobile Filter Press, also known as Skid Mounted Filter Press or Pry Block Filter Press, based on the increasing demands of easy operation, convenient transportation, it added ancillary functions to adapt to different conditions of the modular structure. With all-in-one design, dedicated, diversified optimization program, efficient and convenient features.

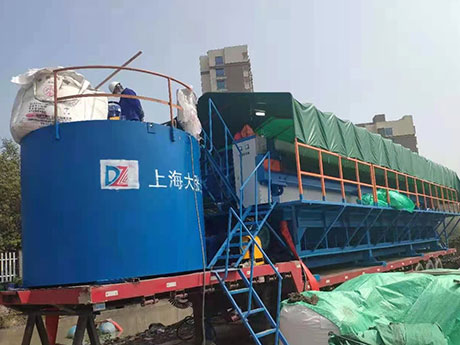

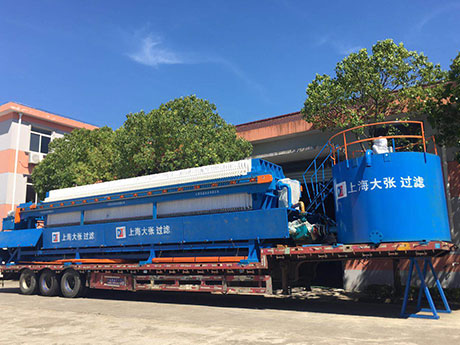

1)The entire system is all in one design with movable flatform, which allows it to be transported to different working sites, thus to save the project cost and bring higher efficiency.
2)The integrated design makes it more compact, efficient and easy to use, and customers do not need to do complex on-site installation.
Click to expand to view the data
| Model | Filter press(m2) | Plate size(mm) | Cake thickness(mm) | Filter chamber volume(L) | Plate NO(pcs) | Filtration pressure(Mpa) | Motor Power(Kw) | Weight(Kg) | Dimensions L*W*H(mm) | Foundation Size(mm) | ||||
| L | B | D | H | |||||||||||
| X_M^AG30/870−U_K^B | 30 | 870*870 | ≤35 | 498 | 23 | ≥0.8 | 2.2 | 3046 | 3880*1250*1300 | 2920 | 700 | 1270 | 785 | |
| X_M^AG40/870−U_K^B | 40 | 623 | 29 | 3593 | 4270*1250*1300 | 3300 | ||||||||
| X_M^AG50/870−U_K^B | 50 | 789 | 37 | 4057 | 4790*1250*1300 | 3820 | ||||||||
| X_M^AG60/870−U_K^B | 60 | 955 | 45 | 4597 | 5310*1250*1300 | 4340 | ||||||||
| X_M^AG70/870−U_K^B | 70 | 1121 | 53 | 5136 | 5830*1250*1300 | 4860 | ||||||||
| X_M^AG80/870−U_K^B | 80 | 1287 | 61 | 5636 | 6350*1250*1300 | 5380 | ||||||||
| X_M^AG50/1000−U_K^B | 50 | 1000*1000 | 776 | 27 | 4 | 4352 | 4270*1500*1400 | 3350 | 780 | 1400 | 870 | |||
| X_M^AG60/1000−U_K^B | 60 | 943 | 33 | 4480 | 4700*1500*1400 | 3780 | ||||||||
| X_M^AG70/1000−U_K^B | 70 | 1109 | 39 | 5263 | 5130*1500*1400 | 4210 | ||||||||
| X_M^AG80/1000−U_K^B | 80 | 1275 | 45 | 5719 | 5560*1500*1400 | 4640 | ||||||||
| X_M^AG100/1000−U_K^B | 100 | 1608 | 57 | 6555 | 6410*1500*1400 | 5490 | ||||||||
| X_M^AG120/1000−U_K^B | 120 | 1941 | 69 | 7466 | 7260*1500*1400 | 6340 | ||||||||
| X_M^AG80/1250−U_K^B | 80 | 1250*1250 | ≤40 | 1560 | 29 | 5.5 | 10900 | 4830*1800*1600 | 3960 | 850 | 1740 | 995 | ||
| X_M^AG100/1250−U_K^B | 100 | 1975 | 37 | 11750 | 5440*1800*1600 | 4570 | ||||||||
| X_M^AG120/1250−U_K^B | 120 | 2391 | 45 | 12600 | 6060*1800*1600 | 5180 | ||||||||
| X_M^AG150/1250−U_K^B | 150 | 2911 | 55 | 13620 | 6820*1800*1600 | 5950 | ||||||||
| X_M^AG160/1250−U_K^B | 160 | 3119 | 59 | 14470 | 7130*1800*1600 | 6255 | ||||||||
| X_M^AG200/1250−U_K^B | 200 | 3847 | 73 | 15320 | 8200*1800*1600 | 7325 | ||||||||
| X_M^AG240/1250−U_K^B | 240 | 4679 | 89 | 16170 | 9420*1800*1600 | 8550 | ||||||||
| X_M^AG250/1250−U_K^B | 250 | 4783 | 91 | 17020 | 9570*1800*1600 | 8700 | ||||||||
| X_M^AG200/1500−U_K^B | 200 | 1500*1500 | 3809 | 49 | 11 | 26120 | 7140*2200*1820 | 5870 | 1170 | 1990 | 1070 | |||
| X_M^AG250/1500−U_K^B | 250 | 4723 | 61 | 26930 | 7730*2200*1820 | 6860 | ||||||||
| X_M^AG300/1500−U_K^B | 300 | 5637 | 73 | 28160 | 8720*2200*1820 | 7850 | ||||||||
| X_M^AG350/1500−U_K^B | 350 | 6551 | 85 | 29600 | 10110*2200*1820 | 9090 | ||||||||
| X_M^AG400/1500−U_K^B | 400 | 7618 | 99 | 31500 | 11260*2200*1820 | 10240 | ||||||||
| X_M^AG450/1500−U_K^B | 450 | 8532 | 111 | 33400 | 12250*2200*1820 | 11230 | ||||||||
| X_M^AG500/1500−U_K^B | 500 | 9446 | 123 | 33380 | 13240*2200*1820 | 12220 | ||||||||
| X_M^AG600/2000−U_K^B | 600 | 2000*2000 | 11901 | 85 | 15 | 54164 | 13030*3000*2500 | 10610 | 1660 | 2000 | 1050 | |||
| X_M^AG700/2000−U_K^B | 700 | 13838 | 99 | 58300 | 14390*3000*2500 | 11920 | ||||||||
| X_M^AG800/2000−U_K^B | 800 | 14945 | 107 | 62460 | 15770*3000*2500 | 13240 | ||||||||
| X_M^AG900/2000−U_K^B | 900 | 17713 | 127 | 66620 | 17150*3000*2500 | 14560 | ||||||||
| X_M^AG1000/2000−U_K^B | 1000 | 19651 | 141 | 70780 | 18530*3000*2500 | 15880 | ||||||||
1000 engineers will always provide service for your project
In 2 hours, contact and give clear solutions
Provide the required information, product, site planning drawings, etc. timely
Slove the problem completely,inlcuding product installation,tech training service,spare parts,on-site maintenance, etc.
1.Short filtration cycle and high efficiency
2. It has higher cost performance, lower running cost
Chamber Filter Press
1.High closing pressure (20-25MPa) can avoid leakage effectively.
2.Hydraulic powerback uses famous motor brand, it is steady in operation.
Hydraulic Filter Press
1.Lower cake moisture compared with other series.
2.High pressure squeezing 1.6MPa is able to get more liquid extraction and higher cake dryness.
Membrane Filter Press
1.It can be used for ultra-filtration by using the filter paper, paperboard.
2.Various filtering medium for options: filter clothes or filter paper, paperboard
Plate And Frame Filter Press
1.Siemens PLC control and automatic cake discharging saves labor.
2.Higher dewatering and filtering efficiency.
Auto Filter Press
1.Need no power consumption.
2.Need no maintenance.
Manual filter press
1.Resist high temperature and high pressure.
2.Meet the special standards in food and pharmacy industries
Stainless Steel Filter Press

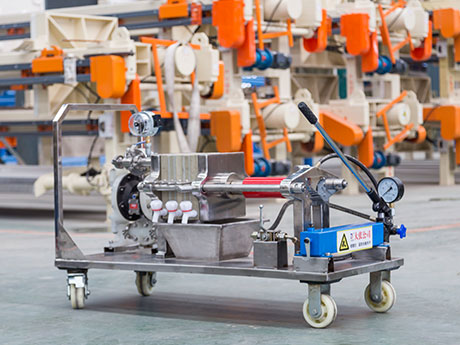

1.specially developed for test filtration and laboratory analyses
