1. Compact structure
2. Easy to install and use
3. Filtration precision 0.5~200um.
Bag filter is widely used in chemical industry,pharmacy,automobile industry,food industry (such as wine and oil) and so on.
Bag filter is a kind of precision filtration equipment, filtration precision can reaches 0.5 micron.

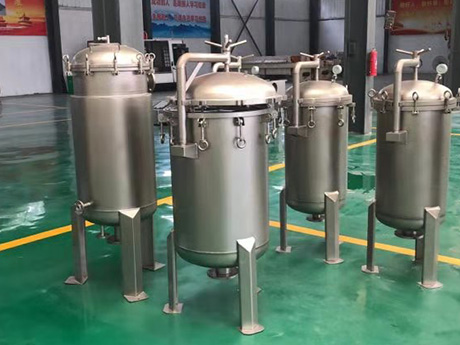

Usually contents two types: single bag filter and multi-bag filter.
According different flow capacity, there are one or more bags inside the filter vessel

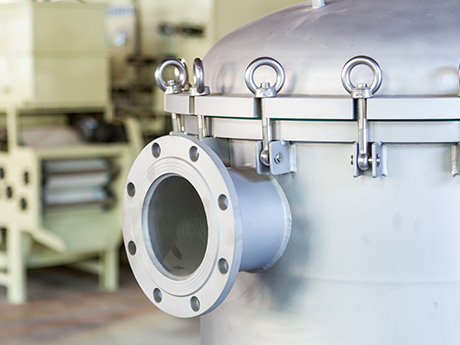

The bag filter consists of housing,supporting basket and filter bag. The filter bag is supported by the stainless steel mesh which is the medium to intercept solid particles. The liquid will be feeded into the housing from the inlet by pump and then is evenly filtered by the filter bag under the pressure from the pump. The impurities will be trapped in the filter bag and filtered liquid go out from outlet. And the filtration process is completed.
Filter bag can be reused and it is very easy to change.
Click to expand to view the data
| Model | Bag QTY | Filter Area（㎡） | Max Flow（t/h） | Caliber（mm） | Working Pressure（Mpa) | Cylinder diameter（φ） | Total Heigh（mm） |
Housing Height(mm) | Center Distance of Foundation Bolts(mm) |
| DL-2P2S | 2 | 1 | 70 | DN50 | 0.5 | 456 | 1572 | 1144 | 616 |
| DL-3P2S | 3 | 1.5 | 105 | DN80 | 508 | 1592 | 1190 | 668 | |
| DL-4P2S | 4 | 2 | 140 | DN100 | 558 | 1632 | 1244 | 718 | |
| DL-5P2S | 5 | 2.5 | 175 | DN150 | 608 | 1788 | 1254 | 768 | |
| DL-6P2S | 6 | 3 | 210 | DN150 | 658 | 1854 | 1300 | 818 | |
| DL-7P2S | 7 | 3.5 | 215 | DN150 | 710 | 1875 | 1340 | 870 | |
| DL-8P2S | 8 | 4 | 280 | DN150 | 760 | 1922 | 1404 | 920 | |
| DL-10P2S | 10 | 5 | 350 | DN200 | 910 | 2004 | 1430 | 1070 | |
| DL-12P2S | 12 | 6 | 420 | DN200 | 962 | 2064 | 1460 | 1132 | |
| DL-14P2S | 14 | 7 | 490 | DN200 | 1012 | 2124 | 1490 | 1212 | |
| DL-16P2S | 16 | 8 | 560 | DN250 | 1112 | 2146 | 1512 | 1312 | |
| DL-18P2S | 18 | 9 | 630 | DN250 | 1162 | 2225 | 1595 | 1362 | |
| DL-20P2S | 20 | 10 | 700 | DN250 | 1212 | 2280 | 1640 | 1412 | |
| DL-22P2S | 22 | 11 | 770 | DN250 | 1366 | 2320 | 1694 | 1516 | |
| DL-24P2S | 24 | 12 | 840 | DN300 | 1416 | 2358 | 1748 | 1616 |
