1. Maximum feeding pressure 2.5MPa.
2. Lowest cake moisture.
3. Circular design plate has better mechanical performance.
1. Non-metallic mines: kaolin, and various clays.
2. Ceramics and porcelains: bone china tableware, electrical ceramic, ornamental porcelain, and so on.

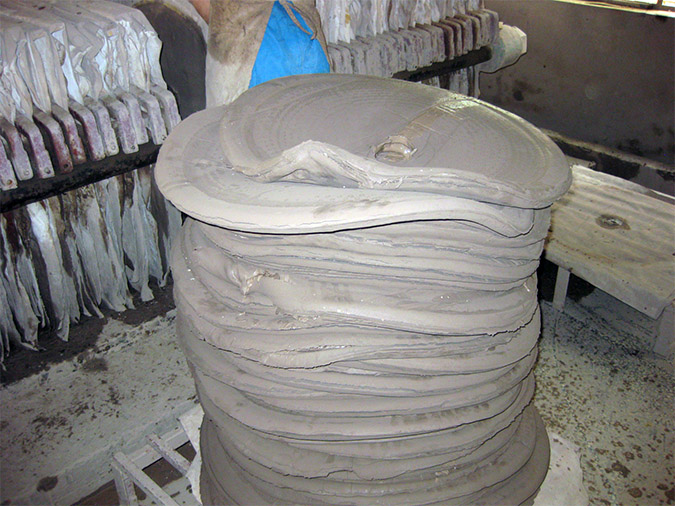

The dewatering effect of the round filter press is far higher than ordinary filter press, a high-pressure filter's single largest cake yield can reach 18 tons, and the lowest cake moisture can reach 15-18%.
The filter area ranges from 20℃ to 80℃
The filtration pressure ranges from 1MPa to 2.5MPa.

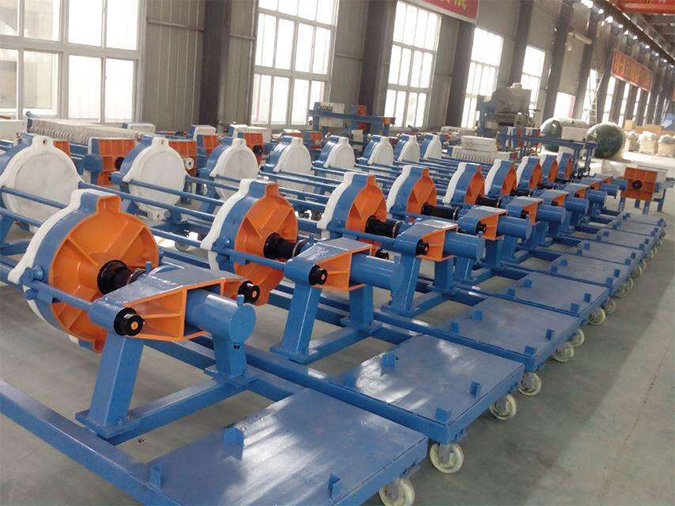

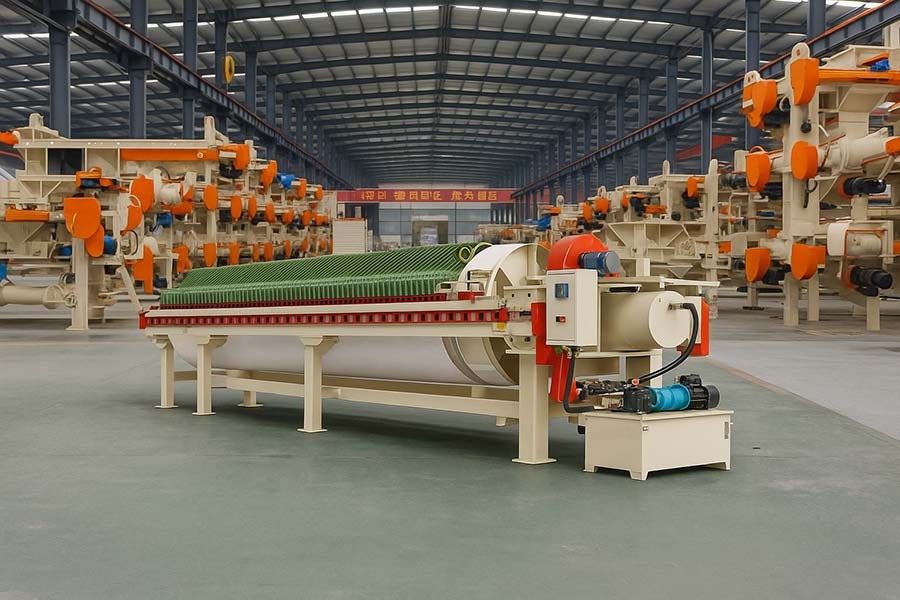

The round filter press is mostly used for the mud filtration of solid minerals and the solid-liquid separation of ceramic, kaolin, clay, and other industries.
The high-pressure round filter press is used in rare earth, bauxite, clay, porcelain clay, kaolin, bentonite, red mud, diatomite, activated clay, beneficiation plant concentrate, and tailings.
Click to expand to view the data
| Model | Filter press(m2) | Plate size(mm) | Cake thickness(mm) | Filter chamber volume(L) | Plate NO(pcs) | Filtration pressure(Mpa) | Weight(Kg) | Dimensions L*W*H(mm) | Foundation Size(mm) | ||
| L | B | D | |||||||||
| X_M^A 20/Ø800−25 | 20 | Ø800 | 25 | 255 | 20 | 1.0-1.2 | 3346 | 3300*1100*1060 | 2300 | 530 | 1050 |
| X_M^A 30/Ø800−25 | 30 | 377 | 30 | 3590 | 3780*1100*1060 | 2980 | |||||
| X_M^A 40/Ø800−25 | 40 | 499 | 40 | 4554 | 4300*1100*1060 | 3500 | |||||
| X_M^A 50/Ø800−25 | 50 | 621 | 50 | 5150 | 4820*1100*1060 | 4020 | |||||
| X_M^A 60/Ø800−25 | 60 | 753 | 60 | 9710 | 5340*1100*1060 | 4540 | |||||
| X_M^A 70/Ø800−25 | 70 | 875 | 70 | 5760 | 5860*1100*1060 | 5580 | |||||
| X_M^A 80/Ø800−25 | 80 | 1000 | 80 | 6860 | 6200*1100*1060 | 5660 | |||||
1000 engineers will always provide service for your project
In 2 hours, contact and give clear solutions
Provide the required information, product, site planning drawings, etc. timely
Slove the problem completely,inlcuding product installation,tech training service,spare parts,on-site maintenance, etc.
1.High closing pressure (20-25MPa) can avoid leakage effectively.
2.Hydraulic powerback uses famous motor brand, it is steady in operation.
Hydraulic Filter Press
1.Short filtration cycle and high efficiency
2. It has higher cost performance, lower running cost
Chamber Filter Press
1.Lower cake moisture compared with other series.
2.High pressure squeezing 1.6MPa is able to get more liquid extraction and higher cake dryness.
Membrane Filter Press
1.It can be used for ultra-filtration by using the filter paper, paperboard.
2.Various filtering medium for options: filter clothes or filter paper, paperboard
Plate And Frame Filter Press
1.Siemens PLC control and automatic cake discharging saves labor.
2.Higher dewatering and filtering efficiency.
Auto Filter Press
1. Increased the effective water-conducting area
2. The filtrate can flow in any direction after passing through the filter cloth, thus shortening the process flow and increasing the filtration speed.

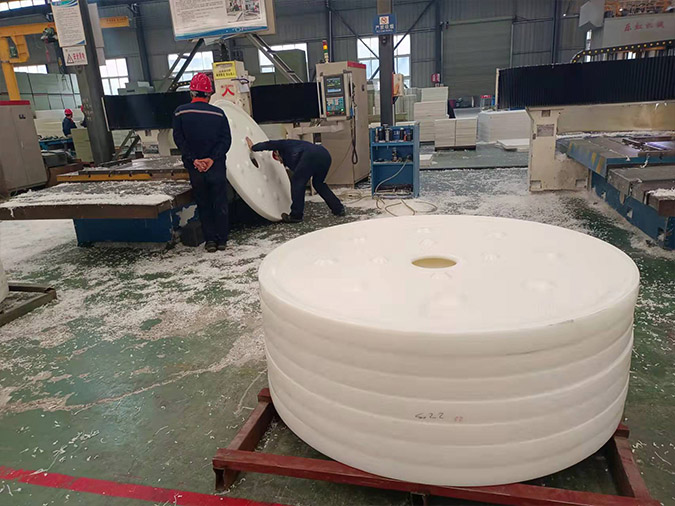

Circular Filter Plate
